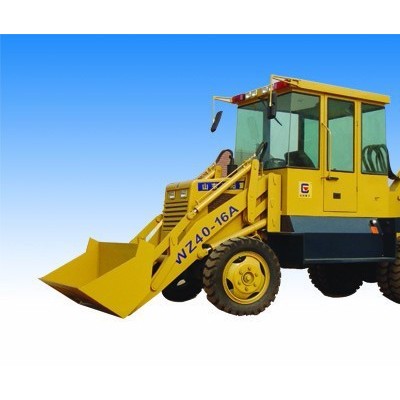

供应wz40-16挖掘机

挖斗斗容Capacity of bucket

0.4m3

系统工作压力System working pressure

20mpa

发动机Engine

4102

额定功率 Rated power

47kw

**低燃油耗率Fuel consumption

238g/kw.h

额定转速Rated speed

2200r/min

**大挖掘高度Max. excavating height

6000mm

**大挖掘深度Max. excavating depth

3200mm

**大挖掘半径Max. excavating radius

5550mm

**大挖掘宽度Max. excavating width

720mm

标准铲斗容量Capacity of bucket

0.9 m3

额定载重重量Rated load

2000kg

卸载高度Dumping height

2850mm

卸载距离Dumping reach

1000mm

动臂提升时间Lifting time of movable arm

3.8s

动臂下降时间Descending time of movable arm

3.4s

铲斗卸料时间Dumping time

3s

**大流量Max. flux

63ml/r

**大牵引力Max. Tractive force

30kn

爬坡能力Grade ability

25°

**大行驶速度（前进，后退）

≤38km/h, 25km/h

Max. traveling speed(forward, backward)

离地间隙Ground clearance

220mm

轴距Wheel base

2800mm

轮距 Tread

1550mm

驱动形式Drive type

2WD

配置轮胎规格Tyre

825-16

外形尺寸(长*宽*高) Size(L*W*H)

7500mm*2100mm*2700mm
