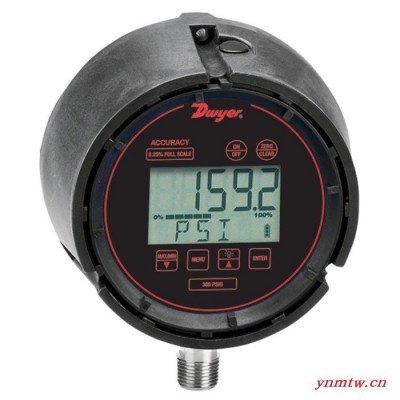

美国Dwyer德威尔DSGT-105-COS DSGT-106-COS DSGT-107-COS压力表

产地	美国
售后服务	一年保修
品牌	Dwyer
型号	DSGT-105-COS
加工定制	是

Service:Compatible, non-combustible liquids & gases.Wetted Materials:17 to 4 stainless steel sensor, 316 SS socket.Housing Materials:Fiberglass reinforced thermoplastic case.Accuracy:0.25% FS (includes linearity, hysteresis, repeatability).Pressure Limit:2 x FS range.Process Connection:1/2" male NPT.Display:5 digit (0.88" high).

TRANSMITTER SPECIFICATIonSPower Requirements:12 to 36 VDC (loop powered).Memory Back Up Supply:(2) C alkaline batteries, installed functional, user replaceable.Output Signal:4 to 20 mA.Response Time:100 ms.Temperature Limits:14 to 140oF (-10 to 60oC).Thermal Effects:0.04% FS/°F.Electrical Connections:3 ft flying leads.Loop Resistance:DC; 0 to 1090 Ω max.Set Point Adjustments:Adjustable through menu selections.Weight:1.45 lb (.66 kg).Agency Approvals:CE.
