CCD侧装客车后视系统,24V车载后视系统，公交车，大巴监控系统

 宇鸿电子－可旋车载侧装摄像头具有可旋、防水、防雾、抗干扰、防尘、抗震，耐高温、色彩逼真等特点
摄像头功能及特点：
1、专门针对大型车种环境设计，
2、可旋转,适合多用途环境，防水、防雾、防震、抗干扰、耐高温。
3、采用SHARP CCD（A级芯片），角度大，色彩鲜艳，感光恢复快，清晰度高。
4、采用高通光亮、高清晰、广角专用镜头，120度视角，长时间工作不会出现模糊等。
5、采用全合金外壳：结构合理，外观美观，喷漆光亮，档次高，防水防震设计合理

参数：

型号                                                              HY-855CD

影像传感器                                                     COLOR CCD

清晰度                                                           420 TV 线

像素                                                              EIA:628(H)×586(V); CCIR:510(H)×496(V)

扫描方式                                                        EIA:525 Lines,60 Field / sec,
CCIR:625 Lines 50 Field / sec

同步方式                                                        内同步

伽玛校正                                                        0.45

信噪比                                                           ≥47dB(AGC Off)

电子快门                                                        On: EIA 1/60~1/100,000Sec,CCIR 1/50~1/100,000Sec;
Off: EIA 1/60 Sec, CCIR 1/50 Sec

**低照度                                                        1 Lux(F:2.0),0 lux with built-in IR LED

红外距离                                                        ≤8米(10个红外灯)

红外状态                                                        Under 10 Lux by CDS

红外电源                                                        CDS 自动控制

镜头                                                              Board Lens 2.5mm/F2.0(optional)

视频输出                                                        1.0Vp-p 75 ohm

增益控制(AGC)                                                自动

连接线                                                           4PIN/DC RCA

防水级别                                                        IP66

操作温/湿度                                                    -10℃～+50℃RH95% Max

存储温/湿度                                                    -20℃～+60℃RH95% Max

电源                                                              DC12V±10% 600mA

尺寸                                                              90(W)X65(D)X60(H)mm

净重                                                              400克

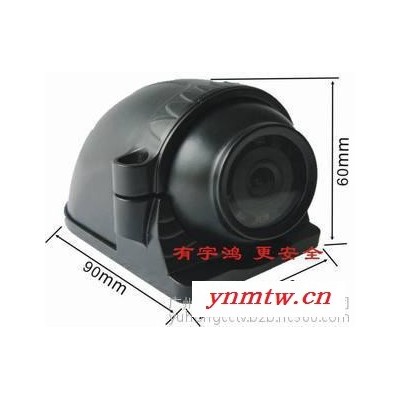

产品图片

产品安装效果图
