| 像素 | 130万（dpi） |
|---|---|
| 类型 | 一体化摄像机 |
| 款式 | 枪式摄像机 |
| 图像传感器 | CMOS |
| 水平清晰度 | 700（TVL） |
| 最低照度 | 0.001（Lux） |
| 分辨率 | 752(H)X582(V) |
| 镜头 | 3.6（mm） |
| 信噪比> | 48（db） |
| 工作温度 | (-20)℃—(50)℃（℃） |
| 背光补偿 | 自动 |
| 尺寸 | 1/3（英寸） |
| 电源电压 | DC12V 500mA（V） |
| 电子快门 | 1/50(1/60)1/100.000秒 |
| 重量 | 4KG |
| 报警功能 | 无 |
| 材质 | 金属 |
| 使用环境 | 连锁店，网吧，家庭，餐馆，小店铺，小超市，大门口，公司办公室，走廊，楼梯间或室外，小范围等监视 |
| 有效距离 | 15米 |
| 监控摄像机镜头 | 手动 |
| 镜头焦距 | 3.6MM |
| 云台控制 | 无 |
| 电脑监控 | 可以 |
| 红外灯照射距离 | 10-15米 |
| 品牌 | 红星视线 |
| 型号 | SX-9204-5024D |
店主疯了
此外 本产品提供包邮优惠
原价949
现价只要649
产品都是高清防水
可质保二年
| 产品名称 | 产品信息 | 数量 | 单位 | 单价（元） | 总价（元） | 备注 |
红外夜视防水 摄像机 | 产品图片如有更换颜色恕不另行通知 （BNC接头赠送40个） | |||||
| 16路高清录像机 | ||||||
| 防雨防水电源 | ||||||
| 视频线 | ||||||
| 支架 |
| |||||
合计（元） | ||||||
| 套装价（元） | ||||||
| 1.运费按实际收取，不同城市运费不同，具体运费请联系客服修改。 2.如套装内产品需要更换，请与客服联系重新算价。 | ||||||
（网络远程功能/高清/DVR/VGA接口/ H.264/录像/回放 ）
应用范围：厂区、学校、商场、宾馆、酒店、、广场 连锁店、网吧、家庭、餐馆、小店铺、小超市、门口、办公室、走廊、楼梯间或室外小范围等的监控安装
SX-9204-5024D-420TVL-24LED
窗体顶端
Features:
StandAlone DVR:
Adopt high performance H.264 video compression, high definition and good image quality.
Embeded Linux operating system, stable performance.
Allow live display, record, playback, backup and network operation at the same time.
Support D1, HD1, CIF recording resolution.
Recording modes: Continuous / Time Schedule / Motion Detection.
Display resolution: NTSC: D1(704 x 480) / PAL: D1(704 x 576).
4CH playback simultaneously, playback modes support Normal Play, Fast Forward, Fast Rewind, frame by frame.
Support VGA output and BNC video output at the same time.
File backup via USB flash drive, USB hard disk, USB CD/RM and Network.
Built-in a SATA interface, support up to 2TB hard disk. (HDD is not included).
Support dual-stream design.
Supports PTZ control through RS-485.
Support Remote Access: LAN, Internet Browser and smart mobile phone(Windows Mobile, iPhone, Android and BlackBerry).
Multiple control methods: front panel, IR remote controller and USB mouse.
Plug and Play, easy to operate.
CCTV Camera:
High-sensitivity 1/4" Color CMOS.
With 24 IR LEDs , the night visual range is up to 10-15m.
3.6mm camera Lens.
Horizontal Definition is 480TV Lines.
Low illumination, high quality image.
Designed with metal case, it can be installed outdoor and indoor.
Specifications:
StandAlone DVR | |||||
Operating System | Linux based | ||||
Video Compression | H.264 | ||||
Video System | NTSC/ PAL | ||||
Video Input/Output | BNC 4-Channel Input/BNC 1-Channel Output | ||||
Other Video/Output | VGA | ||||
Audio Input/Output | RCA 1-Channel Input / RCA 1-Channel Output | ||||
Record | Resolution | NTSC: D1(704 * 480); HD1(704 * 240); CIF(352 * 240) | |||
PAL: D1(704 * 576); HD1(704 * 288); CIF(352 * 288) | |||||
frame Rate | NTSC: 120 fps @ CIF / PAL: 100 fps @ CIF | ||||
Modes | Continuous / Time Schedule / Motion Detection | ||||
Pack Time | 15/30/45/60 mins Selectable | ||||
Display | Resolution | NTSC: D1(704 x 480) / PAL: D1(704 x 576) | |||
frame Rate | NTSC: 120 fps @ D1 / PAL: 100 fps @ D1 | ||||
HDD Interface | SATA, support between 250GB and 2TB | ||||
Playback Search | Time & Date / Event List | ||||
Playback Modes | Normal Play / Fast Forward / Fast Rewind / frame by frame | ||||
Backup | USB flash drive, USB hard disk, USB CD/RM, Network | ||||
USB | USB Backup / USB 2.0 | ||||
PTZ Control | RS-485 | ||||
Simplex / Duplex / Triplex / Pentaplex | Pentaplex | ||||
Network Interface | RJ45, 10M/100M | ||||
Network Protocol | TCP/IP, PPPoE, DHCP and DDNS | ||||
Remote Access | LAN or Internet Browsing | ||||
Alarm | No | ||||
Remote Control | IR Remote Control | ||||
Power Supply | Input: 100-240V AC 50/60Hz; Output: 12V | ||||
Casing Material | metal | ||||
Language | English, French, Greek, Hebrew, Italian, Portuguese, Russian, Spanish, Thai, Turkish, Japanese, Korean, Persian, Polish, Arabic, German, Simplified Chinese, Traditional Chinese, etc. | ||||
Support System | Windows XP, Windows7, Apple's operating system, Android | ||||
DVR Dimension | 25.5 * 23.3 * 4.7cm / 10 * 9.2 * 1.8in | ||||
DVR weight | 895g / 1.97Lb | ||||
IR Security Camera | |||||
Image Sensor | 1/4" Color CMOS | ||||
Lens | 3.6mm | ||||
TV System | PAL | ||||
Effective Pixels | 752 (H) * 582 (V) | ||||
Horizontal Resolution | 480 TV Lines | ||||
Infrared Illumination (Night Vision) | Up to 30ft (10~15m) | ||||
Minimum Illumination | 0.0 Lux | ||||
Number of IR LEDs | 24 pcs | ||||
S/N Ratio | > 45.6dB | ||||
Video Output | 1.0Vp - p/75Ω | ||||
Material | metal Shell | ||||
Operation Temperature | -25°F~122°F / -32°C ~50°C | ||||
Weatherproof | Yes | ||||
Power Supply | Input: 100-240V 50-60Hz; Output: DC12V | ||||
General | |||||
Package Size | 44 * 17.5 * 28.7cm / 17.3 * 6.9 * 11.3in | ||||
Package Weight | 4960g / 10.93Lb | ||||

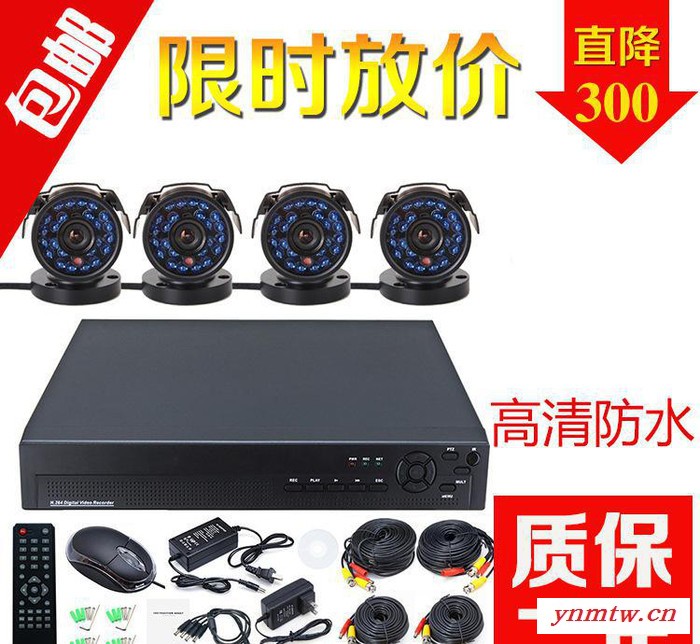

Package included:
1 * 4CH DVR
4 * IR Security Camera
2 * BNC to RCA Cable (10m)
1 * BNC to RCA Cable (20m)
1 * BNC to RCA Cable (30m)
1 * Remote Control
1 * Mouse
1 * Power Supply for DVR
1 * Power Supply for Cameras
1 * CD Software
1 * Power Splitter Cable
1 * User's Manual
