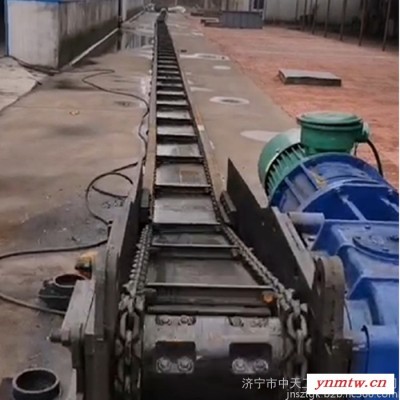

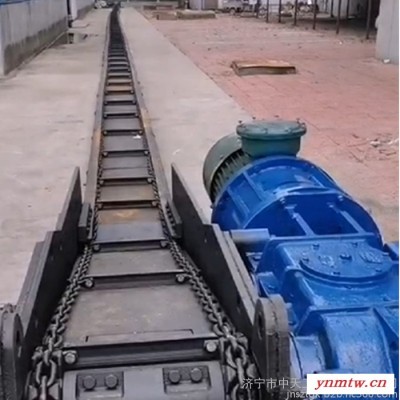

中天SGB280/11小型刮板输送机厂家 加工生产煤矿轻型刮板机 小型刮板机

温馨提示：

由于市场价格浮动影响，以上产品价格、属性仅供参考

具体详情请咨询客服，

真诚期待与您的合作！！

期待您的来电！！

 ↓ ↓ ↓

直拨电话:18678733073

              13280037755

生产批发矿用高质量刮板输送机 轻型刮板机 小型输送机

厂家直供性能可靠小型刮板机 轻型刮板机 小型电煤溜

Scratching conveyor composition:

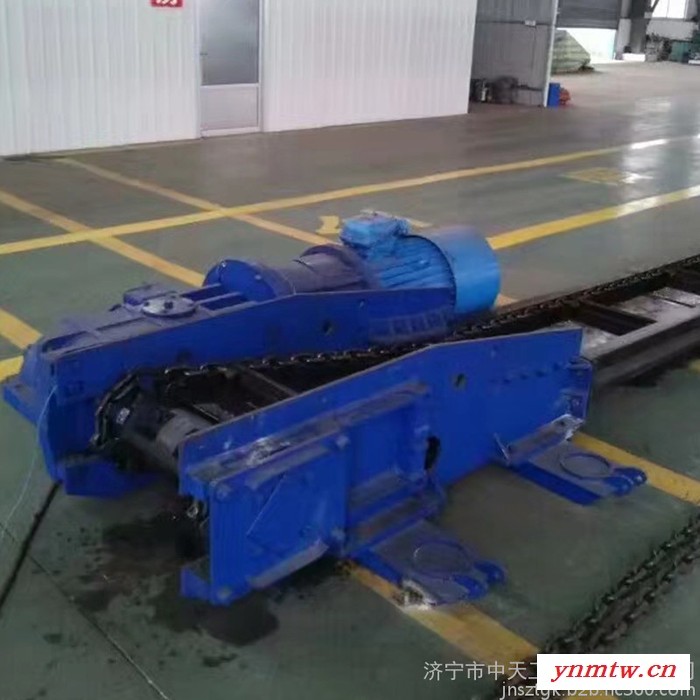

The main structure and components of various types of scraper conveyor are basically the same. It consists of three parts: head, middle part and tail. In addition, there are ancillary components such as hydraulic jacks for the transfer conveyor and fasteners for tightening the chain. The head consists of a nose frame, an electric motor, a hydraulic coupler, a reducer, and a Sprocket. The middle part consists of a transition groove, a middle groove, a chain, and a scraper. The tail of the aircraft is a device for the return of the scraper chain. The tail of the heavy scraper conveyor is the same as the nose, and it is also equipped with a power transmission device. From the location of the crane, it is called the upper nose and the lower nose. And

GB-280/11型防爆刮板运输机规格参数：

型号：                   SGB280/11

运输量(t/h)：                 30

运输距离(m)：                60

刮板链速(m/s)：               0.63

功率（kw)：                   11

刮板链规格（mm)：            fl10×40

刮板间距：                     640

中部槽（长*宽* 高）：     1200×280×125

整机质量（t)：                   3.5

Scraper classification:

According to the arrangement method and structure of the scraper conveyor slot, it can be divided into two types: parallel and overlapping. According to the number of chains and the arrangement method, it can be divided into four types: single chain, bilateral chain, double center chain and three chain.

The scraper conveyor can be used for horizontal transportation and can also be used for inclined transportation. Tilt scraper conveyor

In oblique upward transport, the dip angle of coal seams must not exceed 25 °, and in downward transport, the dip angle must not exceed 20 °. When the dip angle of coal seams is large,Slip devices should be installed. The flexable scraper conveyor allows bending of 2 ° to 4 ° in the horizontal and vertical directions.
