| 产品用途 | 洗涤浓缩设备 |
| 材质 | 铁板 |
| 产地 | 山东诸城 |
| 认证 | IOS9001 |
| 适用范围 | 洗涤浓缩设备 |
| 适用类型 | 洗涤浓缩设备 造纸设备 造纸机械. |
| 品牌 | 镱升机械 |
| 型号 | ZNW |

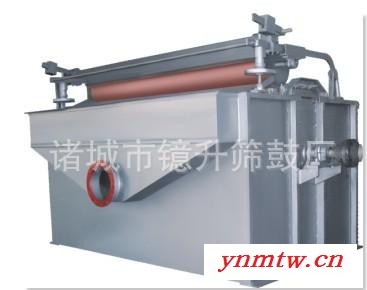

用于木浆、棉浆、稻麦草浆、废纸浆的浓缩洗涤。具有结构紧凑，操作简便，浆种适应性广等优点，亦用于非造纸行业作为过滤其它品种的悬浮液。
For concentrating pulp washing of wood pulp, cotton pulp, rice straw pulp, waste paper .It has a compact, easy to operate and Pulps wide adaptability advantages. Also for the non-paper industry as a filter other liquid of suspension.
| Type | ZNW21 | ZNW22 | ZNW23 | ZNW24 | ZNW25 | ZNW26 | ZNW27 | ZNW28 |
| Pressure of inflow pulp(Mpa) | ≦3 |
| Pressure of outflow pulp(Mpa) | 5-8 |
| Filtrating area(m2) | 5 | 8 | 12 | 14 | 20 | 25 | 30 | 35 |
| Filtrating area(mm) | Ø 1500 | Ø 2000 | Ø 2500 |
| Power of motor(KW) | 4/3 | 4/4 | 4/5.5 | 4/7.5 | 4/7.5 | 4/11 | 4/15 | 4/18.5 |
| Pulp material | Chemical wood pulp | Reed pulp | Rice straw pulp |
| Pressure of inflow pulp(Mpa) | 0.5-1 |
| Pressure of outflow pulp(Mpa) | 4-6 |
| Capacity of production t/m2 | 3-3.5 | 2-2.5 | 1-1.5 |
