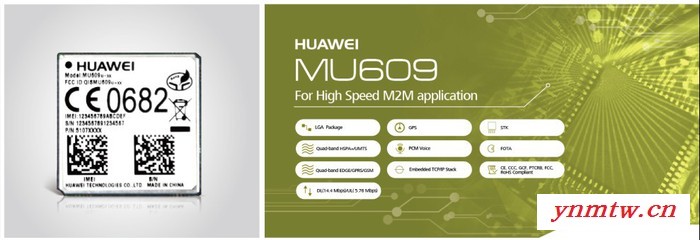

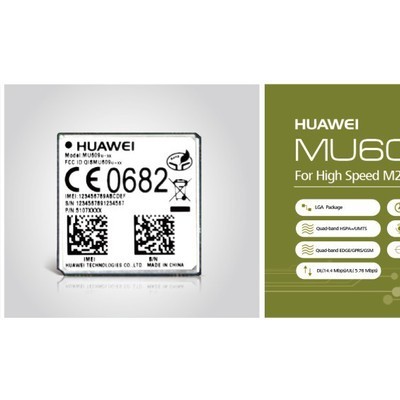

供应华为HuaweiMU609华为2G、3G无线通讯模块

信息传送内容	都可以
品牌	华为Huawei
型号	MU609

MU609

Feature Description

Physical
dimensions
 Dimensions (L × W × H): 30 mm × 30 mm × TBD mm
 Weight: about TBD g
Operating
Bands
WCDMA/HSDPA/HSUPA/HSPA+: 850 MHz/900 MHz//1900
MHz/2100 MHz
GPRS/EDGE: 850 MHz/900 MHz/1800 MHz/1900 MHz
GPS L1: 1575.42 MHz
Operating
Temperature
Normal operating temperature: –20°C to +70°C
Extended operating temperature[1]: –30°C to –20°C, +70°C to
+75°C
Storage
Temperature
–40°C to +85°C
Moisture RH5% to RH95%
Power
Voltage
3.3 V–4.2 V (typical value is 3.8 V)
AT
Commands

See the HUAWEI MU609 HSPA+ LGA Module AT Command

Feature Description
Application
Interface
(145-pin LGA
interface)
USIM (3.0 V or 1.8 V)
One standard Universal Subscriber Identity Module (USIM) card (3
V or 1.8 V)
Audio interface: PCM interface
USB 2.0 (high speed)
One 8-wire Universal Asynchronous Receiver-Transmitter
0(UART0) and one 2-wire UART
GPIOxTBD
ADCx1 (Under development)
Power on/off interface
Hardware reset interface
Antenna
interface
WWAN MAIN antenna x1, WWAN AUX antenna x1,GPS antenna
x1
SMS New message alert
Management of SMS: read SMS, write SMS, send SMS, delete
SMS and list SMS.
Supporting MO and MT. Point-to-point
Data Services GSM CS: UL 9.6 kbps/DL 14.4 kbps
GPRS:UL 85.6 kbps/DL 85.6 kbps
EDGE: UL 236.8 kbps/DL 236.8 kbps
WCDMA CS: UL 64 kbps/DL 64 kbps
WCDMA PS: UL 384 kbps/DL 384 kbps
HSPA+ 14.4 Mbps DL/5.76 Mbps UL
